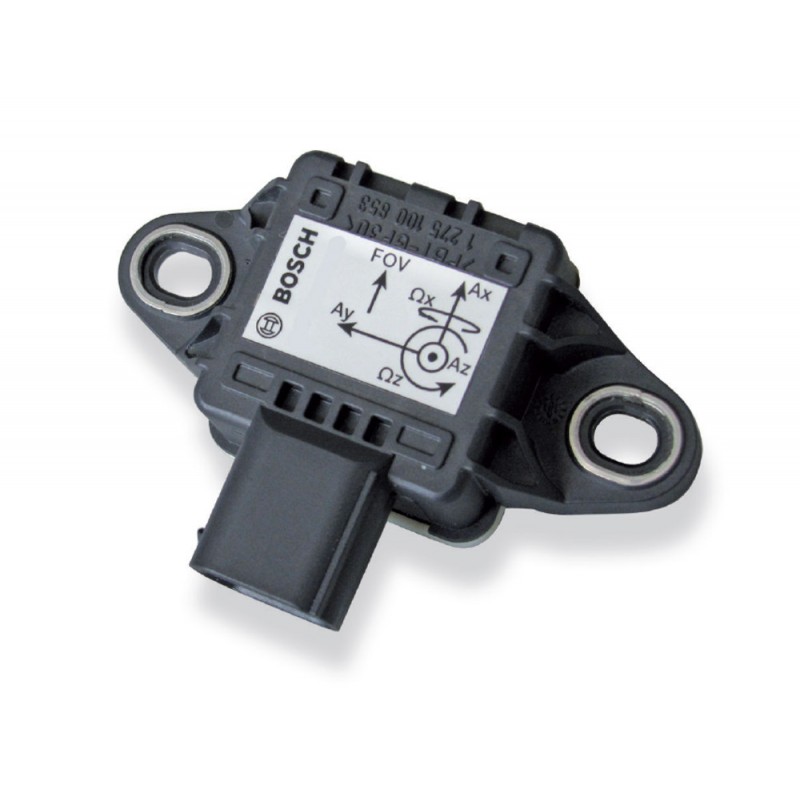

Acceleration Sensor MM5.10

  • Acceleration Sensor MM5.10

  • Call for Price

- +

The MM5.10 is designed to measure the physical effects of both rotational and linear acceleration.

The main feature and benefit of this sensor is the combination of 3 linear and 2 rotational accelerometers with a high speed CAN-signal output.

  • 2-axis rotation rate (yaw rate, roll rate)
  • 3-axis accelerometer (X, Y, Z)
  • 1 Mbaud or 500 kbaud CAN-output
  • 15 Hz low-pass filtered
  • Measurement ranges: ±4.2 g; ±163°/s
The single sensor achieves this using MEMS measuring elements connected to an appropriate integrated circuit. A rotational acceleration around the integrated sensing elements generates a Coriolis force which changes the internal capacity of the micro machined sensing parts. Additionally, a pure surface micro machined element is used to measure the vehicle linear acceleration in all 3 axes. This combination of rotational and lineal acceleration sensors enables a precise measurement of the vehicle dynamics.

Datasheet

Please contact us for pricing
